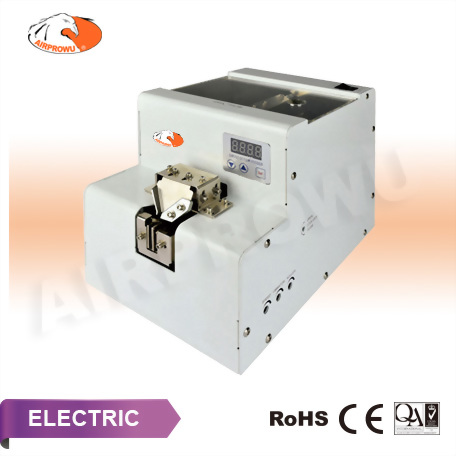

M1-M6 Counting Adjustable Automatic Screw Feeder
modelo :
SC1060-C
SC1060-C Counting
Adjustable Automatic Screw Feeder Machine
● The design of separating rail allows free adjustment and it is easy to operate.
● The special design of the structure makes feeding fast and stable without
idled screws being stuck in the machine.
● The machine can be used with automation and air screwdrivers.
● The feeding and charging speed of the machine can be adjusted freely
according to the operating requirement.
● This machine is suitable for both special 1:1 short screws and
screws with washer.
● Small size, occupying little space, and easy to move.
● Universal power source: It is suitable for power source ranges between
100-240V(AC) 50/60 Hz.
● The drives of feeding and shaking are controlled independently.
You can set your ideal lag shutdown time freely. The breakdown alarm
function will be automatically turned on in case of abnormal conditions.
Adjustable Automatic Screw Feeder Machine
● The design of separating rail allows free adjustment and it is easy to operate.
● The special design of the structure makes feeding fast and stable without
idled screws being stuck in the machine.
● The machine can be used with automation and air screwdrivers.
● The feeding and charging speed of the machine can be adjusted freely
according to the operating requirement.
● This machine is suitable for both special 1:1 short screws and
screws with washer.
● Small size, occupying little space, and easy to move.
● Universal power source: It is suitable for power source ranges between
100-240V(AC) 50/60 Hz.
● The drives of feeding and shaking are controlled independently.
You can set your ideal lag shutdown time freely. The breakdown alarm
function will be automatically turned on in case of abnormal conditions.
SC1060-C Counting
Adjustable Automatic Screw Feeder Machine
● Type of Screw Head:
JCIS- 1, 2, 3, 4 and flat-headed
JIS- Flat head, tightening screw, pressure screw and
UH mushroom head (flat head or oval flat head)
w/t or without washer.
● Mini. Screw Length:
Single screw: Diameter x 1.0;
Screw with spring washer: Diameter + (0.5 x Dia.);
Screw with spring washer and flat washer: Diameter + (1.1 x Dia.)
● Output Speed: 2 pcs/second.
Adjustable Automatic Screw Feeder Machine
● Type of Screw Head:
JCIS- 1, 2, 3, 4 and flat-headed
JIS- Flat head, tightening screw, pressure screw and
UH mushroom head (flat head or oval flat head)
w/t or without washer.
● Mini. Screw Length:
Single screw: Diameter x 1.0;
Screw with spring washer: Diameter + (0.5 x Dia.);
Screw with spring washer and flat washer: Diameter + (1.1 x Dia.)
● Output Speed: 2 pcs/second.
|
Model No. |
Weight |
Size |
Power Source |
Max. Screw |
Adjustable Track |
Suitable Screw Type |
|
|
Input |
Output |
||||||
|
kg |
mm |
V(AC) |
V(DC) |
mm (w/o nuts) |
mm |
||
|
SC1060-C |
4.8 |
235 x 165 x 180 |
110 - 240 |
12 |
25 |
M1 - M6 |
Iron or
Material which can be |
