Automatic Screw Feeder / Magnetic Type
modelo :
SC30M
SC30M NEW
Automatic Screw Feeder / Magnetic Type
● Air Pressure: 5 - 6 bar (kg/cm2)
● Working Depth 12mm
● Weight: Screw Feeder: 22kg ; Electric Screwdriver: 0.8kg
● Operation Temperature: 10°C - 40°C
● Working Pressure: 5.5 bar (kg/cm2)
● For Metal Screw Use.
Automatic Screw Feeder / Magnetic Type
● Air Pressure: 5 - 6 bar (kg/cm2)
● Working Depth 12mm
● Weight: Screw Feeder: 22kg ; Electric Screwdriver: 0.8kg
● Operation Temperature: 10°C - 40°C
● Working Pressure: 5.5 bar (kg/cm2)
● For Metal Screw Use.
|
Model No. |
Adjustable Track |
Max. Screw |
Max. Screw |
Power |
Capacity |
Size |
Weight |
Suitable Screw Type |
|
|
可調軌道 |
最大螺絲頭 |
最大螺絲長度 |
電源 |
數量 |
尺寸 |
重量 |
適用螺絲類型 |
||
|
mm |
mm |
mm |
V(AC) |
PCS/Min |
mm |
kg |
- |
||
|
SC30M |
M3.14 |
5.6 |
13.3 |
220, 50Hz, |
20 |
350 x 250 x 380 |
23 |

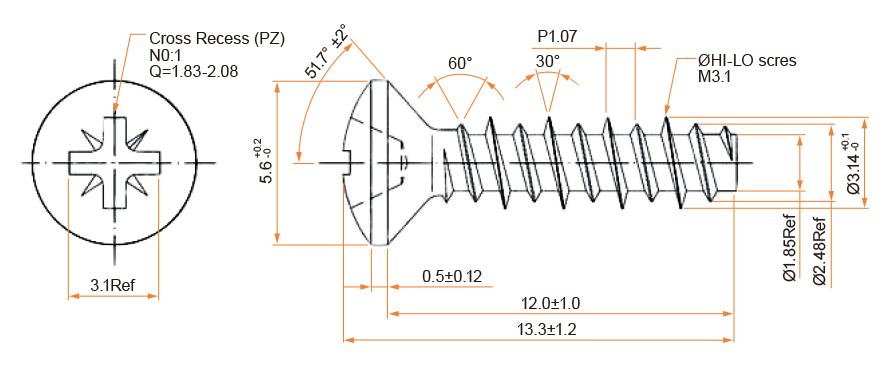

Screw: Pozidriv Type |
|
