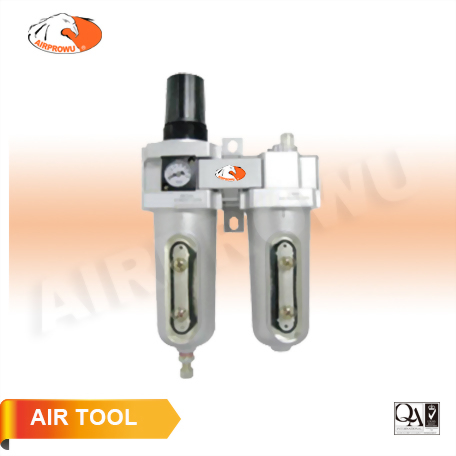

F.R.L. Combinations
modelo :
FRL704 / FRLD704 / FRLM704 / FRL706 / FRLD706 / FRLM706
FRL704 / FRLD704 / FRLM704
FRL706 / FRLD706 / FRLM706
F.R.L. Combinations
● Gauge could be infixed as option for preventing damage and interference.
● Heavy duty type - High Air flow and drain capacity.
● Transparent water level indicator for easy checking.
● Suitable for any high flow air pressure equipment or system.
FRL706 / FRLD706 / FRLM706
F.R.L. Combinations
● Gauge could be infixed as option for preventing damage and interference.
● Heavy duty type - High Air flow and drain capacity.
● Transparent water level indicator for easy checking.
● Suitable for any high flow air pressure equipment or system.
FRL704 / FRLD704 / FRLM704
FRL706 / FRLD706 / FRLM706
F.R.L. Combinations
● Medium: Air
● Max Output Pressure (PSI): 250
● Max Flow (l/min): 7 - 215
● Operating Temperature Range (°C): 5°C - 60°C
● Drain Capacity (ml): 80 ml
● Oil Capacity (ml): 150 ml
● Recommendable Lubricants: ISO VG-32
FRL704
● Port Size (PT, NPT): 1/2"
● Filter Element: 5μ
● Max Input Pressure (PSI): 4000
● Filter & Regulator/ Lubricator: FR704 / L704
FRLD704
● Port Size (PT, NPT): 1/2"
● Filter Element: 0.3μ
● Max Input Pressure (PSI): 4000
● Filter & Regulator/ Lubricator: FRD704 / L704
FRLM704
● Port Size (PT, NPT): 1/2"
● Filter Element: 0.01μ
● Max Input Pressure (PSI): 3900
● Filter & Regulator/ Lubricator: FRM704 / L704
FRL706
● Port Size (PT, NPT): 3/4"
● Filter Element: 5μ
● Max Input Pressure (PSI): 4000
● Filter & Regulator/ Lubricator: FR706 / L706
FRLD706
● Port Size (PT, NPT): 3/4"
● Filter Element: 0.3μ
● Max Input Pressure (PSI): 4000
● Filter & Regulator/ Lubricator: FRD706 / L706
FRLM706
● Port Size (PT, NPT): 3/4"
● Filter Element: 0.01μ
● Max Input Pressure (PSI): 3900
● Filter & Regulator/ Lubricator: FRM706 / L706
FRL706 / FRLD706 / FRLM706
F.R.L. Combinations
● Medium: Air
● Max Output Pressure (PSI): 250
● Max Flow (l/min): 7 - 215
● Operating Temperature Range (°C): 5°C - 60°C
● Drain Capacity (ml): 80 ml
● Oil Capacity (ml): 150 ml
● Recommendable Lubricants: ISO VG-32
FRL704
● Port Size (PT, NPT): 1/2"
● Filter Element: 5μ
● Max Input Pressure (PSI): 4000
● Filter & Regulator/ Lubricator: FR704 / L704
FRLD704
● Port Size (PT, NPT): 1/2"
● Filter Element: 0.3μ
● Max Input Pressure (PSI): 4000
● Filter & Regulator/ Lubricator: FRD704 / L704
FRLM704
● Port Size (PT, NPT): 1/2"
● Filter Element: 0.01μ
● Max Input Pressure (PSI): 3900
● Filter & Regulator/ Lubricator: FRM704 / L704
FRL706
● Port Size (PT, NPT): 3/4"
● Filter Element: 5μ
● Max Input Pressure (PSI): 4000
● Filter & Regulator/ Lubricator: FR706 / L706
FRLD706
● Port Size (PT, NPT): 3/4"
● Filter Element: 0.3μ
● Max Input Pressure (PSI): 4000
● Filter & Regulator/ Lubricator: FRD706 / L706
FRLM706
● Port Size (PT, NPT): 3/4"
● Filter Element: 0.01μ
● Max Input Pressure (PSI): 3900
● Filter & Regulator/ Lubricator: FRM706 / L706
