F.R.L. Combination Unit
modelo :
S-1000 / S-2000

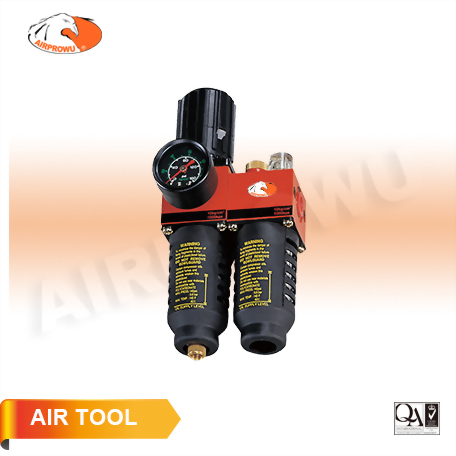

S-1000
F.R.L. Combination Unit
● Port Size: PT (NPT): 1/4"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 1.0-9.0
● Max. Service Pressure KGF/cm²: 10
● Max. Flow L / min: 980
● Operating Temp Range °C: 5-50
● Drain Capacity CC: 40
● Oil Capacity CC: 40
● Recommendable Lubricanats: ISO VG-32
S-2000
F.R.L. Combination Unit
● Port Size: PT (NPT): 3/8"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 1.0-9.8
● Max. Service Pressure KGF/cm²: 10
● Max. Flow L / min: 1200
● Operating Temp Range °C: 5-50
● Drain Capacity CC: 120
● Oil Capacity CC: 120
● Recommendable Lubricanats: ISO VG-32
F.R.L. Combination Unit
● Port Size: PT (NPT): 1/4"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 1.0-9.0
● Max. Service Pressure KGF/cm²: 10
● Max. Flow L / min: 980
● Operating Temp Range °C: 5-50
● Drain Capacity CC: 40
● Oil Capacity CC: 40
● Recommendable Lubricanats: ISO VG-32
S-2000
F.R.L. Combination Unit
● Port Size: PT (NPT): 3/8"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 1.0-9.8
● Max. Service Pressure KGF/cm²: 10
● Max. Flow L / min: 1200
● Operating Temp Range °C: 5-50
● Drain Capacity CC: 120
● Oil Capacity CC: 120
● Recommendable Lubricanats: ISO VG-32
