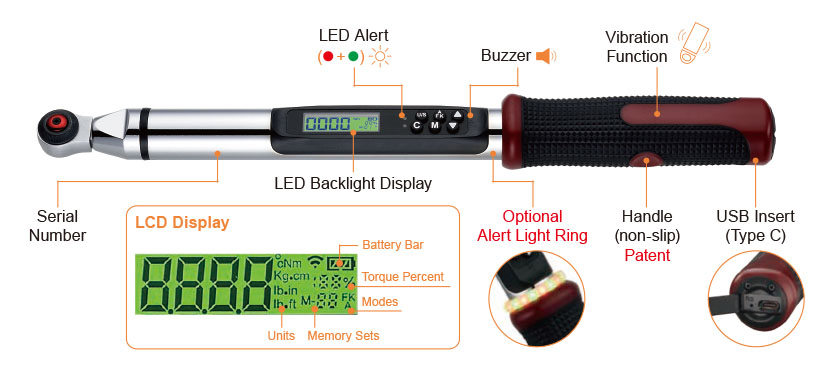

Rechargeable Digital Interchangeable & Angle Torque Wrench
Rechargeable Digital Interchangeable & Angle Torque Wrench
● Accuracy: CW: ±2% ; CCW: ±3%
● Angle Accuracy: ±2°
● Min. Angle: 0.1° ; Max. Angle: 360° ; Setting Range: 0.1° - 360°
● Units: Nm, Kg.cm, lb-in, lb-ft
● Operating Temperature: -10°C - 60°C
● Storage Temperature: -20°C - 70°C
● Humidity: Up to 90% non-condensing
● Battery Type: 16650
● Type: USB Charge (Type-C)
● Battery life(Fully charged used time): 8 - 10 hrs
● Battery life(Recharge time): 90 - 120 mins
● Drop Test: 1m
● Shaking Test: 10G
● Service life test: 10000 cycles
● Environmental test: PASS
● EMC test: PASS
● Optional Accessories: Alert Light Ring
|
ITEM NO. |
Square |
Insert |
Max. |
Setting Range |
Min. |
Max. Torque
Load/ |
Length |
Weight |
|
mm |
Nm |
Nm |
Nm / Degrees |
Nm |
mm |
g |
||
|
DTRL-SHRIA30-1 |
1/4" |
9 x 12 |
30 |
3 - 30 |
0.01 / 0.1° |
88 / 62 |
387 |
778±50 |
|
DTRL-SHRIA30-2 |
3/8" |
9 x 12 |
30 |
3 - 30 |
0.01 / 0.1° |
294 / 202 |
387 |
778±50 |
|
DTRL-SHRIA60-2 |
3/8" |
9 x 12 |
60 |
6 - 60 |
0.01 / 0.1° |
294 / 202 |
390 |
810±50 |
|
DTRL-SHRIA135-2 |
3/8" |
9 x 12 |
135 |
13.5 - 135 |
0.1 / 0.1° |
294 / 202 |
406 |
884±50 |
|
DTRL-SHRIA135-3 |
1/2" |
14 x 18 |
135 |
13.5 - 135 |
0.1 / 0.1° |
735 / 512 |
428 |
1110±50 |
|
DTRL-SHRIA200-3 |
1/2" |
14 x 18 |
200 |
20 - 200 |
0.1 / 0.1° |
735 / 512 |
538 |
1270±50 |
|
DTRL-SHRIA340-3 |
1/2" |
14 x 18 |
340 |
34 - 340 |
0.1 / 0.1° |
735 / 512 |
638 |
1428±50 |
|
DTRL-SHRIA400-3 |
1/2" |
14 x 18 |
400 |
40 - 400 |
0.1 / 0.1° |
735 / 512 |
638 |
1428±50 |
