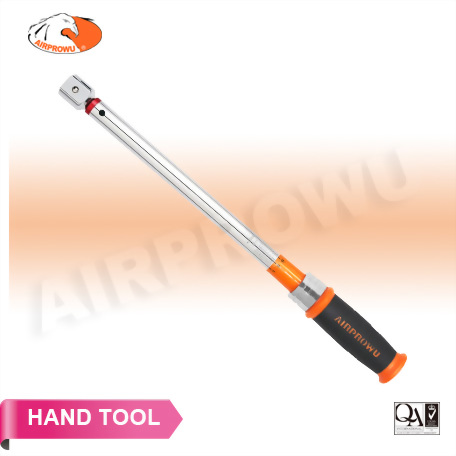

Interchangeable Torque Wrench

modelo : STW34 Series

quantidade :

Descrição
Especificações

STW34 Series
Interchangeable Torque Wrench

● Accuracy CW+-3% ,CCW+-5%.
● Special design, easily take out when press the button.
● Low weight and smooth adjusting design for energy saving.
● The tube made of alloy steel with good performance of hardenability.
● Heavy-duty & accurate mechanism for industrial use.

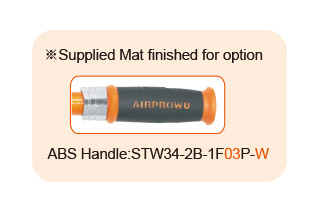

● Non-toxic. green safety ABS handle.
● Fashionable looks hold a special attraction.
● Each torque wrench has unique series no.and attached to Certification report.
● Exceed DIN-ISO and ASME international standards requirement.

Application
● Automobile,Heavy Engineering (Wind Farm, Thermal Power station, Petrochemicals),
Aeronautics & Military.

STW34 Series
Interchangeable Torque Wrench

ITEM NO	Size	Torque Range	Graduation	Length	Weight	Case
ITEM NO	Inch	in-lb & Nm	in-lb & Nm	mm	g	CTN
STW34-2B-1F03P-W	9x12	20 -100 in-lb	1.0 in-lb	275	441	25
STW34-2A-2F03P-W	9x12	40 - 200 in-lb	1.0 in-lb	305	481	25
STW34-3A-1F03P-W	9x12	15 - 100 ft-lb	0.5 ft-lb	412	850	16
STW34-3A-2F03P-W	14x18	15 - 100 ft-lb	0.5 ft-lb	425	910	16
STW34-4B-1F03P-W	14x18	20 - 150 ft-lb	1.0 ft-lb	480	1160	9
STW34-4A-2F03P-W	14x18	30 - 250 ft-lb	1.0 ft-lb	533	1260	9
STW34-2B-1N03P-W	9x12	2 - 10 Nm	0.1 Nm	275	441	25
STW34-2A-2N03P-W	9x12	4 - 20 Nm	0.1 Nm	305	481	25
STW34-3B-2N03P-W	9x12	10 - 60 Nm	0.5 Nm	315	502	25
STW34-3A-1N03P-W	9x12	20 - 100 Nm	0.5 Nm	412	850	16
STW34-3A-2N03P-W	14x18	20 - 100 Nm	0.5 Nm	425	910	16
STW34-4B-1N03P-W	14x18	40 - 200 Nm	1.0 Nm	480	1160	9
STW34-4A-2N03P-W	14x18	60 - 340 Nm	2.0 Nm	533	1260	9

For Option

ITEM NO	Size	Torque Range	Graduation	Length	Weight	Case
ITEM NO	Inch	in-lb & Nm	in-lb & Nm	mm	g	CTN
STW34-2A-2FN03P-W	9x12	40 - 200 in-lb/ 5.1 - 23.2 Nm	1.0 in-lb	305	481	25
STW34-3A-1FN03P-W	9x12	15 - 100 ft-lb/ 23.7 - 139 Nm	0.5 ft-lb	412	850	16
STW34-3A-2FN03P-W	14x18	15 - 100 ft-lb/ 23.7 - 139 Nm	0.5 ft-lb	425	910	16
STW34-4B-1FN03P-W	14x18	20 - 150 ft-lb/ 33.9 - 210.2 Nm	1.0 ft-lb	480	1160	9
STW34-4A-2FN03P-W	14x18	30 - 250 ft-lb/ 47.5 - 345.8 Nm	1.0 ft-lb	533	1260	9
STW34-2B-1NF03P-W	9x12	2 - 10 Nm/ 22 - 93 in-lb	0.1 Nm	275	441	25
STW34-2A-2NF03P-W	9x12	4 - 20 Nm/ 40 - 181 in-lb	0.1 Nm	305	481	25
STW34-3B-2NF03P-W	9x12	10 -60 Nm/ 9.2 - 46.1 ft-lb	0.5 Nm	315	502	25
STW34-3A-1NF03P-W	9x12	20 - 100 Nm/ 16.6 - 75.6 ft-lb	0.5 Nm	412	850	16
STW34-3A-2NF03P-W	14x18	20 - 100 Nm/ 16.6 - 75.6 ft-lb	0.5 Nm	425	910	16
STW34-4B-1NF03P-W	14x18	40 - 200 Nm/ 33.2 - 151.2 ft-lb	1.0 Nm	480	1160	9
STW34-4A-2NF03P-W	14x18	60 - 340 Nm/ 51.6 - 258.1 ft-lb	2.0 Nm	533	1260	9
