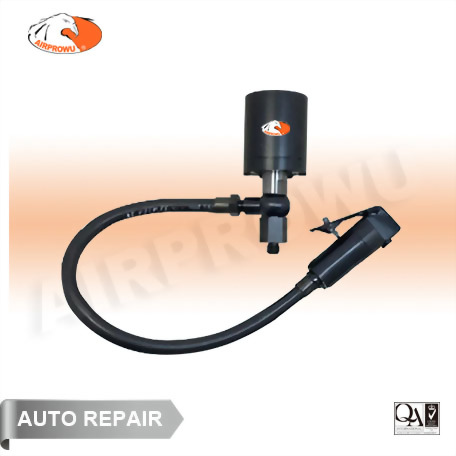

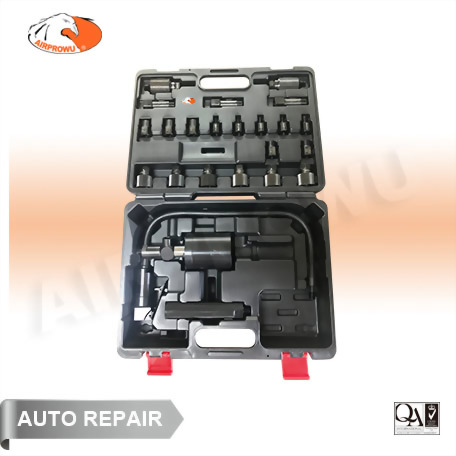

Injector Air Slide Hammer w/ 21PCS Adaptors
Injector Puller Tool Set (Pneumatic)
w/ 21PCS Adaptors
● This is a newly designed of PNEUMATIC DIESEL INJECTOR DISTRACTOR TOOL for handheld switches.
● The handheld switch was only a general ON/OFF fluld switch in the past. But the new handheld
switch has a push type switch with a safe trigger design for one-handed operation.

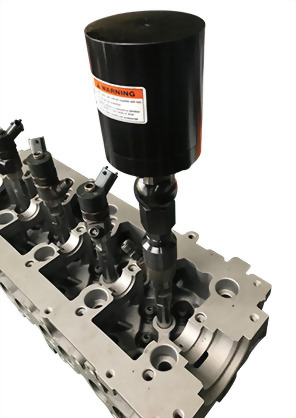

● It allows the user to operate the PNEUMATIC DIESEL INJECTOR DISTRACTOR TOOL as
it likes and perform the action of pulling out the fuel injector with 21pcs sultable accessories.
Injector Air Slide Hammer
w/ 21PCS Adaptors
● Blows Per Min: 0-750 B.P.M
● Shank Size: M14
● Air Consumption: 23 CFM
● Air Pressure: 90 Psi
● Min Hose Size: 3/8"
● Air Inlet: 1/4"
● Length: 179mm
● Weigth: 2.85kgs
|
Item No. |
Specification |
|
A1 |
BOSCH 110: M17 x P1.0 |
|
A2 |
BOSCH 120: M18 x P0.75 |
|
A3 |
DENSO: M20 x P1.0 |
|
A4 |
M12: I:M12 x 1.5 ; O:M20 x P1.5 |
|
A5 |
M14: M14 x P1.5 |
|
A6 |
M16: M16 x P1.5 |
|
A7 |
M18: M18 x P1.5 |
|
A8 |
M22: I:M14 x 1.45 ; O:M22 x P1.5 |
|
A9 |
M8 x P1.0 |
|
A10 |
M8 x P1.25 |
|
A11 |
M10 x P1.0 |
|
A12 |
M10 x P1.5 |
|
A13 |
M14 x P1.0 |
|
A14 |
M25 x P0.5 |
|
A15 |
M25 x P1.0 |
|
A16 |
M27 x P0.75 |
|
A17 |
M27 x P1.0 |
|
A18 |
M27 x P1.0 |
|
A19 |
M29 x P1.0 |
|
A20 |
CRN1: M31 x P0.75 |
|
A21 |
CRN2: M26 x P0.75 |
