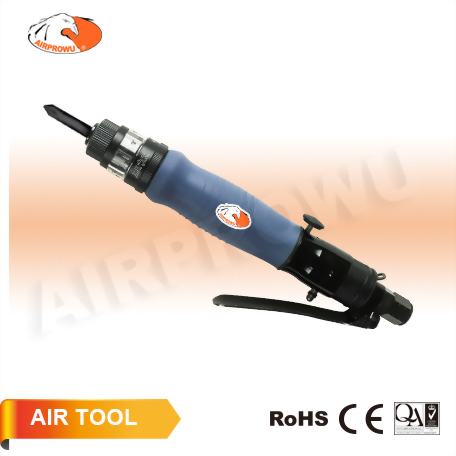

Industrial Shut-Off Air Screwdriver (Lever Start)
SA-R-LUH Series
Industrial Shut-Off Air Screwdriver
( Straight Type Lever Start Reverse Button )

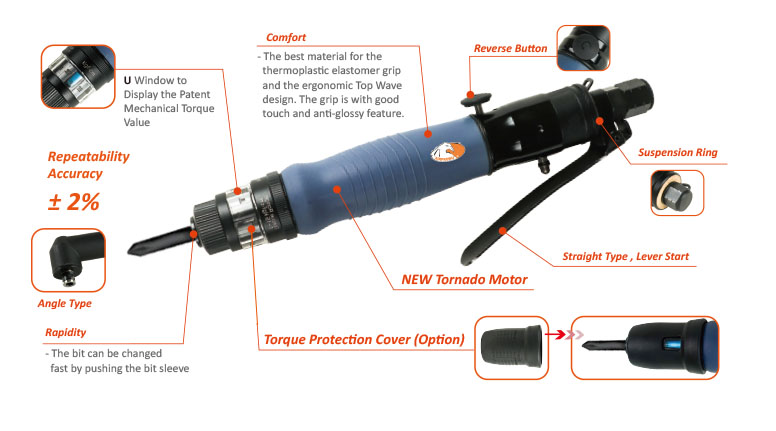

● New
Cyclone Motor:
The patent motor is with 60% more torque power,
30~40% Less counterforce, 5~6dBA less noise level compare with the AIRPRO’s
original version.
● Complete Torque Accuracy:
The ISO5393 B class CPK value torque deviation
(CPK value > 1.33) is with low vibration (<2.5m/s2), torque repetitive
accuracy +/-2%,
and wider torque range.
● New Reverse Button:
Only by pressing the reverse button, users can
easily change to the reverse direction without lifting the tool away from work
piece.
● U Window to Display the Patent Mechanical Torque Value:
The torque can easily to be read and adjusted.
Industrial Shut-Off Air Screwdriver
( Straight Type Lever Start Reverse Button )
Optional Accessories:
SA-TC5A3535NM Hose ID.5mm (Nm unit)
SA-TC5A3536NM Hose ID.8mm (Nm unit)
SA-TC5A3533KG Hose ID.5mm (Kgf-cm unit)
SA-TC5A3534KG Hose ID.8mm (Kgf-cm unit)

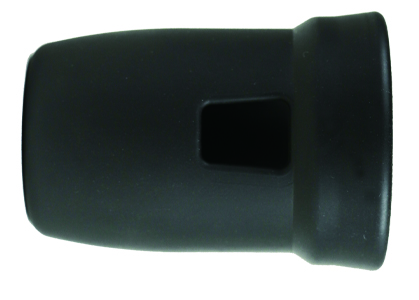

Torque Protection Cover
|
Model No. |
Torque |
Free |
Mini Air |
Air |
Air |
Noise |
Repeatability |
Net Weight |
||
|
扭力 |
無負載轉速 |
氣管 |
氣壓 |
耗氣量 |
噪音值 |
% |
重量 |
|||
|
Lever Start |
Nm |
Kgf-cm |
R.P.M |
mm |
kg/cm2 |
L / S |
±2dBA |
P/L |
kg (lb) |
|
|
SA-R025LUH3200 |
0.5 - 2.5 |
5.1 - 25.5 |
3,200 |
5 |
6 |
6 |
74 |
± 2 |
0.60 (1.32) |
|
|
SA-R030LUH2200 |
0.5 - 3.0 |
5.1 - 30.6 |
2,200 |
5 |
6 |
6 |
74 |
± 2 |
0.60 (1.32) |
|
|
SA-R050LUH850 |
0.4 - 5.0 |
4.1 - 51.0 |
850 |
5 |
6 |
6 |
74 |
± 2 |
0.60 (1.32) |
|
|
SA-R050LUH1400 |
0.7 - 5.0 |
7.1 - 51.0 |
1,400 |
5 |
6 |
6 |
74 |
± 2 |
0.60 (1.32) |
|
|
SA-R070LUH500 |
1.1 - 7.0 |
11.2 - 71.4 |
500 |
5 |
6 |
6 |
74 |
± 2 |
0.60 (1.32) |
|
|
SA-R110LUH320 |
1.0 - 10.0 |
10.2 - 102.0 |
320 |
5 |
6 |
6 |
74 |
± 2 |
0.70 (1.54) |
|
|
SA-R095LUH2200 |
3.0 - 9.5 |
30.6 - 96.9 |
2,200 |
8 |
6 |
10 |
78 |
± 2 |
1.24 (2.73) |
|
|
SA-R180LUH1000 |
3.0 - 18.0 |
30.6 - 183.6 |
1,000 |
8 |
6 |
10 |
78 |
± 2 |
1.27 (2.80) |
|
|
SA-R280LUH550 |
5.0 - 28.0 |
51.0 - 285.6 |
550 |
8 |
6 |
10 |
78 |
± 2 |
1.28 (2.82) |
|
