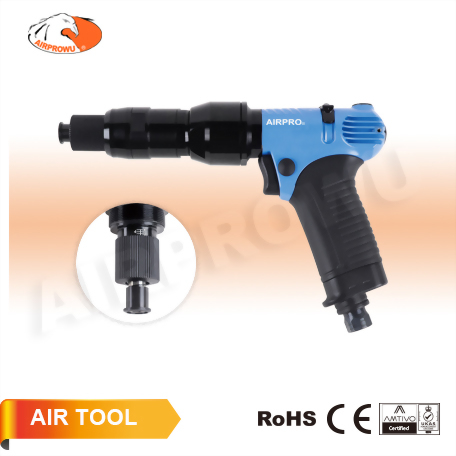

Full Auto Shut-Off Hydraulic Air Screwdriver High Speed/ Low Reaction Torque

modelo : SA-Q-BVH Series

quantidade :

SA-Q-BVH Series Torque Display
Full Auto Shut-Off Hydraulic Air Screwdriver
(High Speed/ Low Reaction Torque)

● Using the lastest patented oil pulse clutch design,
it can pr oduce extremely low recoil and reduce the operator’s burden.
● The tool will automatically stop when the set torque value i s locked.
● Suitable for high-precision industries,with high locking rep eatability.
● Equipped with a mechanical torque display,there is no need t o use a torque tester to calibrate each time.
You can confirm the current working torque at a glance.
● The forward and reverse switch design allows the tool to eas ily lock and remove screws.
● Machine capability index > 1.67 @ ±10% according to ISO5393.
● Tool performance testing and certification according to VDI/V DE 2647.
● Specification of bit : 1/4" HEX 、 3/8" SQ.

SA-Q-BVH Series Torque Display
Full Auto Shut-Off Hydraulic Air Screwdriver
(High Speed/ Low Reaction Torque)

● Pistol Type Trigger Start

Model No.

Torque
Range

Free
Speed

Mini Air
Hose ID

Air
Pressure

Air
Cons.

Noise
Level

Standard
Deviation

Net
Weight

Length

Fastening Capacity

扭力

無負載轉速

氣管

氣壓

耗氣量

噪音值

重量

長度

Machine
Screw
Dia.

Tapping
Screw
Dia.

Kgf-cm

R.P.M

kg/cm²

m³/min

±2dBA

P/L

kg (lb)

inch (mm)

SA-Q100BVH3600

3 - 10

30 - 100

3,600

8.0

0.55

± 5

0.95 (2.09)

11.61 (295)

M5-M8

M4-M6

SA-Q200BVH3600

5 - 20

50 - 200

3,600

8.0

0.55

± 5

1.00 (2.20)

11.61 (295)

M6-M10

M5-M8

SA-Q-BVH Series Torque Display
Full Auto Shut-Off Hydraulic Air Screwdriver
(High Speed/ Low Reaction Torque)

Item	Mechanism
Item	New Hydraulic Clutch Type	Hydraulic Pulse Type	Full Auto Shut-Off
Power	High	High	Low
Free Speed	Medium	Medium - Fast	Slow
Torque Accuracy	High	Medium	High
Torque Deviation	±5%	±15% ~ 30%	±3%
Reaction Force	Low	Low	High
Torque Adjustment	Torque Ring	Hydraulic Flow	Torque Ring
Clutch Type	Hydraulic Clutch	Hydraulic Pulse Type	Mechanical Clutch
Maintenance	Lubrication Needed	Time-Consuming Oil Change	Lubrication Needed
Adv. & Disadv.	High & precise torque, easy operation, easy adjustment	Low accuracy, complex adjustment & maintenance	Moderate torque, high accuracy, easy adjustment
