FR.L. Combination Unit
modelo :
S-3500 / S-4000 / S-5000

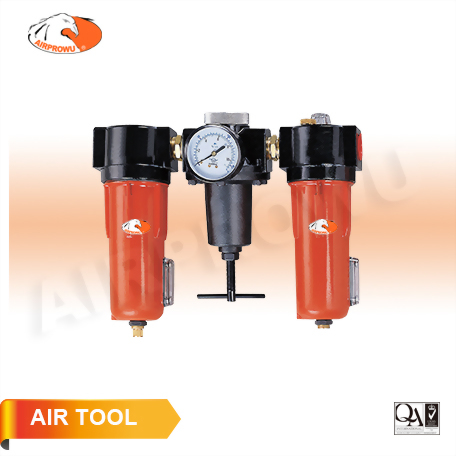

S-3500
FR.L. Combination Unit
● Port Size: PT (NPT): 3/4"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 1.0-9.9
● Max. Service Pressure KGF/cm²: 12
● Max. Flow L / min: 5000
● Operating Temp Range °C: 5-65
● Drain Capacity CC: 400
● Oil Capacity CC: 400
● Recommendable Lubricanats: ISO VG-32
S-4000
FR.L. Combination Unit
● Port Size: PT (NPT): 1"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 1.0-9.9
● Max. Service Pressure KGF/cm²: 12
● Max. Flow L / min: 8000
● Operating Temp Range °C: 5-65
● Drain Capacity CC: 1000
● Oil Capacity CC: 1000
● Recommendable Lubricanats: ISO VG-32
S-5000
FR.L. Combination Unit
● Port Size: PT (NPT): 1"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 1.0-9.5
● Max. Service Pressure KGF/cm²: 12
● Max. Flow L / min: 10000
● Operating Temp Range °C: 5-65
● Drain Capacity CC: 1800
● Oil Capacity CC: 1800
● Recommendable Lubricanats: ISO VG-32
FR.L. Combination Unit
● Port Size: PT (NPT): 3/4"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 1.0-9.9
● Max. Service Pressure KGF/cm²: 12
● Max. Flow L / min: 5000
● Operating Temp Range °C: 5-65
● Drain Capacity CC: 400
● Oil Capacity CC: 400
● Recommendable Lubricanats: ISO VG-32
S-4000
FR.L. Combination Unit
● Port Size: PT (NPT): 1"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 1.0-9.9
● Max. Service Pressure KGF/cm²: 12
● Max. Flow L / min: 8000
● Operating Temp Range °C: 5-65
● Drain Capacity CC: 1000
● Oil Capacity CC: 1000
● Recommendable Lubricanats: ISO VG-32
S-5000
FR.L. Combination Unit
● Port Size: PT (NPT): 1"
● Filter Eiement: 5μ
● Adj. Pressure Range KGF/cm²: 1.0-9.5
● Max. Service Pressure KGF/cm²: 12
● Max. Flow L / min: 10000
● Operating Temp Range °C: 5-65
● Drain Capacity CC: 1800
● Oil Capacity CC: 1800
● Recommendable Lubricanats: ISO VG-32
