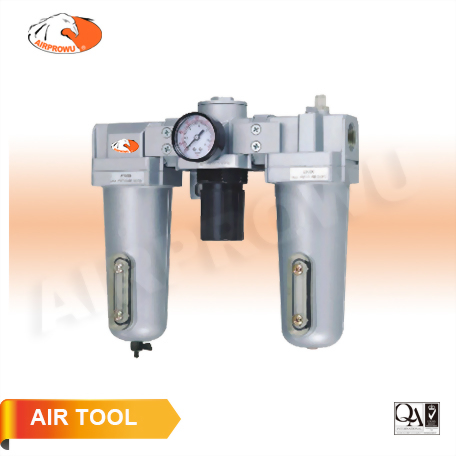

F.R.L. Combinations
modelo :
C906A / C908A
C906A / C908A
F.R.L. Combinations
● Auto Drain design
● Heavy duty type - High Air flow and drain capacity.
● Transparent water level indicator for easy checking.
F.R.L. Combinations
● Auto Drain design
● Heavy duty type - High Air flow and drain capacity.
● Transparent water level indicator for easy checking.
● Suitable for any high flow air pressure equipment or system.
C906A / C908A
F.R.L. Combinations
● Medium: Air
● Body Color: PT&G thread-silver color / NPT thread-black color
● Filter Element: 5μ
● Operating Temperature Range (°C): 5°C - 60°C
● Recommendable Lubricants: ISO VG-32
C906A
● Port Size (PT, NPT): 3/4"
● Max Input Pressure (PSI/MPA): 250/1.7
● Max Output Pressure (PSI/MPA): 225/1.6
● Max Flow (l/min): 4600
● Drain Capacity (ml): 350ml
● Oil Capacity (ml): 350ml
● Air Filter / Regulator / Lubricator: F906A / R906 / L906
C908A
● Port Size (PT, NPT): 1"
● Max Input Pressure (PSI/MPA): 250/1.7
● Max Output Pressure (PSI/MPA): 225/1.6
● Max Flow (l/min): 5200
● Drain Capacity (ml): 350ml
● Oil Capacity (ml): 350ml
● Air Filter / Regulator / Lubricator: F908A / R908 / L908
