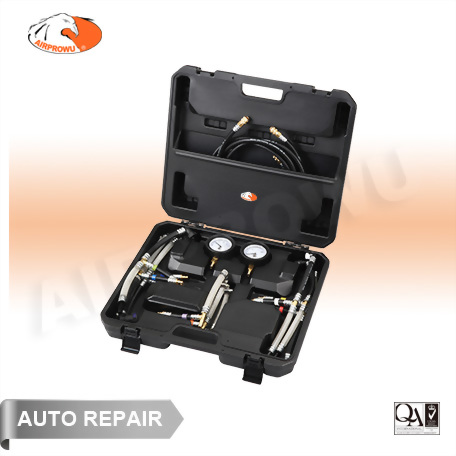

Diesel Engine Low Pressure Diagnostic Set
modelo :
AET-00831K
AET-00831K NEW
Diesel Engine Low Pressure Diagnostic Set
● This diagnostic set is to inspect low pressure or return fuel side of diesel engines.
● Two manometers with different scales (-1 - 5 bar and -1 - 15 bar) offer more accurate test results.
● Ten fuel line adapters cover a wide range of diesel engines and car makes.
● Translucent tube on adapters help observe impurities and bubbles in the fuel.
● 2 meter long hoses help connections in confined areas in engine compartment.
Diesel Engine Low Pressure Diagnostic Set
● This diagnostic set is to inspect low pressure or return fuel side of diesel engines.
● Two manometers with different scales (-1 - 5 bar and -1 - 15 bar) offer more accurate test results.
● Ten fuel line adapters cover a wide range of diesel engines and car makes.
● Translucent tube on adapters help observe impurities and bubbles in the fuel.
● 2 meter long hoses help connections in confined areas in engine compartment.
AET-00831K NEW
Diesel Engine Low Pressure Diagnostic Set
Contents
● 1PC Manometer -1 - 5 bar
● 1PC Manometer -1 - 15 bar
● 2PCS Connector Hose (2 meter, Ø6.0mm)
● 1PC T-connector SAE 8 x 20mm
● 1PC T-connector SAE 9.5 x 20mm
● 1PC T-connector NG8 Type 246
● 1PC T-connector SAE 8 x 30mm
● 1PC T-connector SAE 10 x 20mm
● 1PC T-connector SAE 10 x 30mm
● 1PC T-connector SAE 11.8 x 25mm
● 1PC T-connector Ø6mm
● 1PC T-connector Ø8mm
● 1PC T-connector Ø10mm
Diesel Engine Low Pressure Diagnostic Set
Contents
● 1PC Manometer -1 - 5 bar
● 1PC Manometer -1 - 15 bar
● 2PCS Connector Hose (2 meter, Ø6.0mm)
● 1PC T-connector SAE 8 x 20mm
● 1PC T-connector SAE 9.5 x 20mm
● 1PC T-connector NG8 Type 246
● 1PC T-connector SAE 8 x 30mm
● 1PC T-connector SAE 10 x 20mm
● 1PC T-connector SAE 10 x 30mm
● 1PC T-connector SAE 11.8 x 25mm
● 1PC T-connector Ø6mm
● 1PC T-connector Ø8mm
● 1PC T-connector Ø10mm
