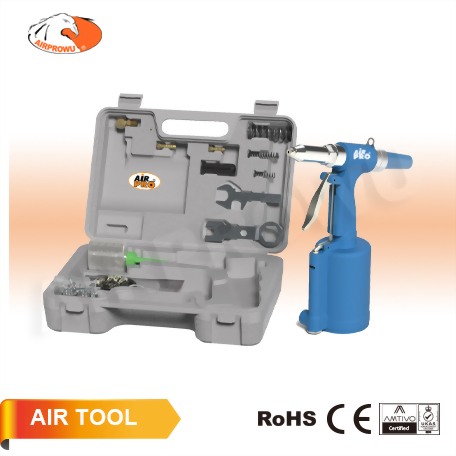

Air Hydraulic Riveter Kit (74 PCS)
modelo :
SA88144K
SA88144K
74 PCS Air Hydraulic Riveter Kit
● Nose Pieces: 3/32" (2.4mm), 1/8" (3.2mm),
5/32" (4.0mm), 3/16" (4.8mm)
74 PCS Air Hydraulic Riveter Kit
● Nose Pieces: 3/32" (2.4mm), 1/8" (3.2mm),
5/32" (4.0mm), 3/16" (4.8mm)
SA88144K
74 PCS Air Hydraulic Riveter Kit
Contents
● 1PC SA88144 Air Hydraulic Riveter
● 1PC Joint Nut
● 2PCS 1pc Each for Air Hose Joint Size
(1/4" & 5/16")
● 40PCS Each 3/16", 1/8", 3/32", 5/32" Rivet 10PCS
● 1PC Oil Pot
● 1PC Jaw Case
● 1PC Jaw (Set)
● 1PC Jaw Pusher
● 1PC Jaw Pusher Spring
● 1PC Valve Pusher Spring
● 1PC Each for Return Spring A & B
● 1PC Safety Cap
● 1PC Frame Cap Nut
● 1PC Each for Spanner Gauge & Spanner
● 6PCS Each 5/32"(4.0mm), 1/8"(3.2mm), 3/32"(2.4mm) Nosepiece 2pcs
● 1PC 3/16"(4.8mm) Nosepiece
● 5PCS Frame O Ring
● 2PCS Frame Back Up Ring
● 1PC Oil Piston O Ring
● 1PC Oil Piston Backup Ring
● 1PC Each for Valve Pusher O Ring & Valve
● 1PC Air Piston O Ring
● 1PC Valve Pusher O Ring
● 1PC Blow Molded Case
74 PCS Air Hydraulic Riveter Kit
Contents
● 1PC SA88144 Air Hydraulic Riveter
● 1PC Joint Nut
● 2PCS 1pc Each for Air Hose Joint Size
(1/4" & 5/16")
● 40PCS Each 3/16", 1/8", 3/32", 5/32" Rivet 10PCS
● 1PC Oil Pot
● 1PC Jaw Case
● 1PC Jaw (Set)
● 1PC Jaw Pusher
● 1PC Jaw Pusher Spring
● 1PC Valve Pusher Spring
● 1PC Each for Return Spring A & B
● 1PC Safety Cap
● 1PC Frame Cap Nut
● 1PC Each for Spanner Gauge & Spanner
● 6PCS Each 5/32"(4.0mm), 1/8"(3.2mm), 3/32"(2.4mm) Nosepiece 2pcs
● 1PC 3/16"(4.8mm) Nosepiece
● 5PCS Frame O Ring
● 2PCS Frame Back Up Ring
● 1PC Oil Piston O Ring
● 1PC Oil Piston Backup Ring
● 1PC Each for Valve Pusher O Ring & Valve
● 1PC Air Piston O Ring
● 1PC Valve Pusher O Ring
● 1PC Blow Molded Case
|
Model No. |
Rivet Capacity |
Traction |
Stroke |
Net |
Air |
Air |
Avg-air |
||||||
|
拉釘規格 |
拉力 |
行程 |
重量 |
進氣口 |
空氣壓力 |
平均耗氣量 |
|||||||
|
Inch |
mm |
lb.f |
kg.f |
inch |
mm |
lb |
kg |
NPT(PT) |
psi |
bar |
CFM |
L/min |
|
|
SA88144 |
3/32",1/8", 5/32",3/16" |
2.4,3.2,4.0,4.8 |
2,146 |
974 |
0.63 |
16 |
3.19 |
1.45 |
1/4" |
90 |
6.2 |
0.058 |
1.64 |
