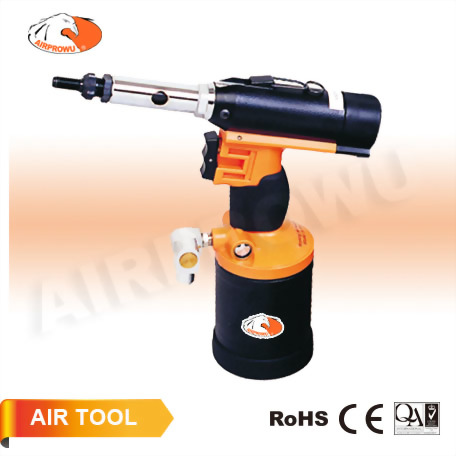

Air Hydraulic Rivet Nut Tool
modelo :
SA8922 / SA8922SAE
SA8922 Metric Size(M4-M12)
SA8922SAE Inch Size(#8-32~#1/2"-13 )
Air Hydraulic Rivet Nut Tool
● Rivet Nut Setting capacity:
M4 (#8-32), M5 (#10-24 or #10-32 ), M6 (1/4"-20),
M8 (5/16"-18), M10 (3/8"-16), M12 (1/2"-13)
● Large Power & Front Inlet
● Air Cons.: 4CFM(113L/min)
SA8922SAE Inch Size(#8-32~#1/2"-13 )
Air Hydraulic Rivet Nut Tool
● Rivet Nut Setting capacity:
M4 (#8-32), M5 (#10-24 or #10-32 ), M6 (1/4"-20),
M8 (5/16"-18), M10 (3/8"-16), M12 (1/2"-13)
● Large Power & Front Inlet
● Air Cons.: 4CFM(113L/min)
SA8922 Metric Size(M4-M12)
SA8922SAE Inch Size(#8-32~#1/2"-13 )
Air Hydraulic Rivet Nut Tool
SA8922SAE Inch Size(#8-32~#1/2"-13 )
Air Hydraulic Rivet Nut Tool
|
Model No. |
Rivet Capacity |
Traction |
Stroke |
Net |
Air |
Air |
|||||
|
拉釘規格 |
拉力 |
行程 |
重量 |
進氣口 |
空氣壓力 |
||||||
|
Inch |
mm |
lb.f |
kg.f |
inch |
mm |
lb |
kg |
NPT(PT) |
psi |
bar |
|
|
SA8922(SAE) |
#8-32, #10-24, #1/4"-20, #5/16"-18, #3/8"-16, #1/2"-13 |
M4 , M5, M6 , M8 , M10 , M12 |
6,000 |
2,724 |
0.27 |
7 |
5.07 |
2.3 |
1/4" |
85-95 |
6.0-6.7 |
