Advanced Multimeter
modelo :
ADT-00111
ADT-00111 NEW 0924
Advanced Multimeter
● DC/AC Voltage Measurement.
● Current Measurement. (AC TRUE RMS / DC)
● AC/DC Milli-Voltage Measurement.
● Capacitance Measurement.
● Resistance Measurement.
● Diode/Continuity Measurement.
● Frequency/Duty Cycle Measurement.

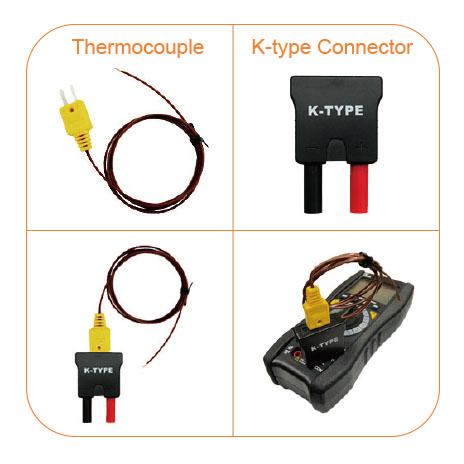

● Temperature measurement,
use with accessories of thermocouple and K-type connector.
● Non-contact Voltage Sensing.
● Auto shut down. ● Backlight.
● Built-in buzzer. ● Hold function.
Advanced Multimeter
● DC/AC Voltage Measurement.
● Current Measurement. (AC TRUE RMS / DC)
● AC/DC Milli-Voltage Measurement.
● Capacitance Measurement.
● Resistance Measurement.
● Diode/Continuity Measurement.
● Frequency/Duty Cycle Measurement.
● Temperature measurement,
use with accessories of thermocouple and K-type connector.
● Non-contact Voltage Sensing.
● Auto shut down. ● Backlight.
● Built-in buzzer. ● Hold function.
ADT-00111 NEW 0924
Advanced Multimeter
● Display: LCD
● Maximum Resolution: 6000 counts, 3-6/7 digits
● Range: Auto / Manual
● Data Refresh Rate: 3 times / sec
● Low Power Indication: Yes
● Working Temperature: 0 - 50°C (32 - 122°F)
● Storage Temperature: -10 - 60°C (14 - 140°F)
● Power Source: 9V 6F22 Battery
● Maximum Limit Values:
- AC: 750V / 10A
- DC: 1000V / 10A
- Ω: 60M
- TEM: -55°C - 1300°C (-67°F - 2372°F)
- CAP: 60.00mF
- Hz: 9.999MHz
● Humidity: < 80%RH
● Cat Category: CAT IV 600V ; CAT III 1000V
● Pollution Degree: 2
Advanced Multimeter
● Display: LCD
● Maximum Resolution: 6000 counts, 3-6/7 digits
● Range: Auto / Manual
● Data Refresh Rate: 3 times / sec
● Low Power Indication: Yes
● Working Temperature: 0 - 50°C (32 - 122°F)
● Storage Temperature: -10 - 60°C (14 - 140°F)
● Power Source: 9V 6F22 Battery
● Maximum Limit Values:
- AC: 750V / 10A
- DC: 1000V / 10A
- Ω: 60M
- TEM: -55°C - 1300°C (-67°F - 2372°F)
- CAP: 60.00mF
- Hz: 9.999MHz
● Humidity: < 80%RH
● Cat Category: CAT IV 600V ; CAT III 1000V
● Pollution Degree: 2
