90° Air Angle Drill (0.4HP)
SA6133
90° Air Angle Drill (0.4HP)
SA6133L
90° Extended Air Angle Drill (0.4HP)
● Free Speed: 3,200 RPM
● Horse Power: 0.4HP (298W)
● 2PC Planet Gear
Optional Accessories

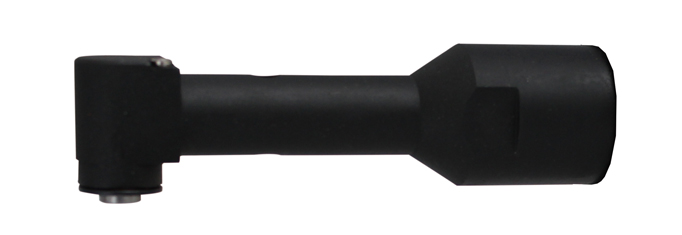

SA6133-R
90° Repl Head Of
SA6133, SA6132A, SA6632A, SA6633A & SA6634A
● Spindle Thread: 1/4" - 28 UNF

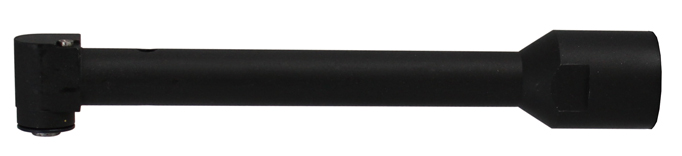

SA6133L-R
90° Repl Extended Head Of SA6133L
● Spindle Thread: 1/4" - 28 UNF
SA6133
90° Air Angle Drill (0.4HP)
SA6133L
90° Extended Air Angle Drill (0.4HP)
● Sound dBA 84-86
|
Model No. |
Spindle |
Horse |
Free |
Net |
Overall |
Air |
Air Inlet |
Hose |
|||||
|
主軸螺紋 |
馬力 |
無負載轉速 |
重量 |
長度 |
耗氣量 |
進氣口 |
氣管 |
||||||
|
UNF |
HP |
W |
R.P.M |
lb |
kg |
Inch |
mm |
CFM |
L/min |
NPT(PT) |
Inch |
mm |
|
|
SA6133 |
1/4"-28 |
0.4 |
298 |
3,200 |
1.76 |
0.80 |
10.0 |
254 |
4.0 |
113 |
1/4" |
3/8 |
10 |
|
SA6133L |
1/4"-28 |
0.4 |
298 |
3,200 |
2.10 |
0.97 |
13.2 |
335 |
4.0 |
113 |
1/4" |
3/8 |
10 |
