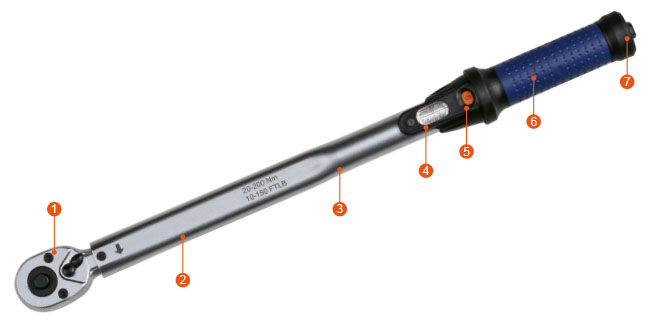

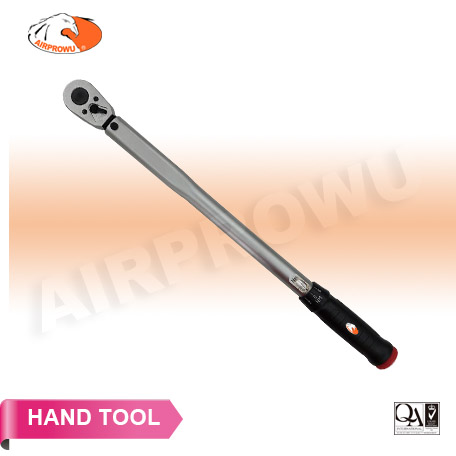

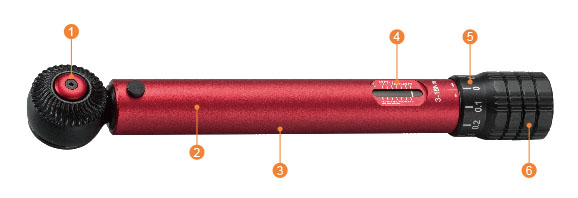

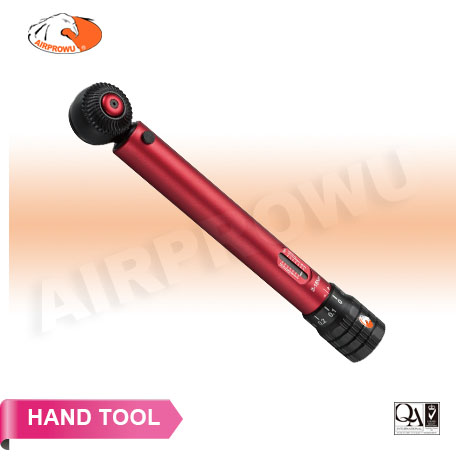

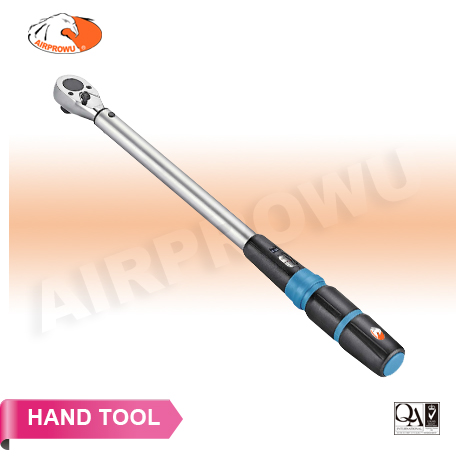

72T Screen Scale Torque Wrench
72T Screen Scale Torque Wrench
● Accuracy: ±4%
● Torque Wrench Type: Click, Clockwise Only
● Conform to DIN EN ISO 6789-1: 2017 Type II class A
|
ITEM NO. |
Square |
Teeth |
Torque Range |
Fine Scale |
Length |
Weight |
|
Nm |
mm |
g |
||||
|
STW83-14025 |
1/4" |
72 |
5 - 25 Nm / 49 - 226 lbf·in |
0.1 |
275 |
370 |
|
STW83-38025 |
3/8" |
72 |
5 - 25 Nm / 49 - 226 lbf·in |
0.1 |
275 |
420 |
|
STW83-38050 |
3/8" |
72 |
10 - 50 Nm / 9.2 - 39 lbf·ft |
0.5 |
418 |
808 |
|
STW83-38100 |
3/8" |
72 |
20 - 100 Nm / 16.6 - 75.6 lbf·ft |
0.5 |
418 |
878 |
|
STW83-12100 |
1/2" |
72 |
20 - 100 Nm / 16.6 - 75.6 lbf·ft |
0.5 |
418 |
978 |
|
STW83-12200 |
1/2" |
72 |
40 - 200 Nm / 33 - 151 lbf·ft |
1 |
502 |
1260 |
|
STW83-12340 |
1/2" |
72 |
60 - 340 Nm / 52 - 258 lbf·ft |
2 |
594 |
1340 |
|
STW83-34340 |
3/4" |
72 |
60 - 340 Nm / 52 - 258 lbf·ft |
2 |
594 |
1400 |
