7" & 9" Industrial Air Turbo Angle Grinder
SA5445TG-9 9" (229mm) w/ Governor
Industrial Air Turbo Angle Grinder
w/o Grinding Wheel
● Horse Power: 6.1 HP (4549 W)
● Air Cons. (Max.): 126 CFM (3565.8 L/min)

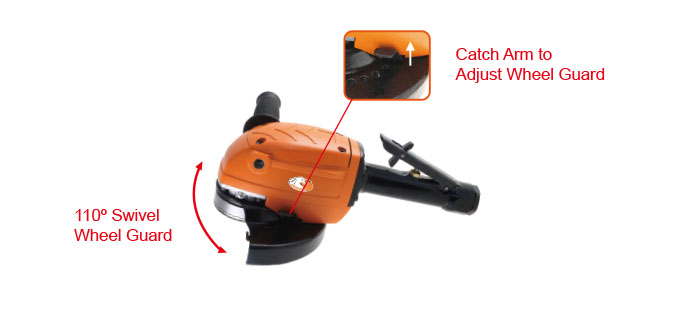

● Swivel Guard
SA5445TG-9 9" (229mm) w/ Governor
Industrial Air Turbo Angle Grinder
w/o Grinding Wheel
|
Model No. |
Wheel |
Free |
Net |
Overall |
Air |
Air |
Horse |
Hose |
Air |
|||||||
|
砂輪尺寸 |
無負載轉速 |
重量 |
長度 |
進氣口 |
空氣壓力 |
馬力 |
氣管 |
耗氣量 |
||||||||
|
Inch |
mm |
R.P.M (±10%) |
lb |
kg |
Inch |
mm |
BSP |
psi |
bar |
HP |
W |
Inch |
mm |
CFM |
L/min |
|
|
SA5445TG-7 |
7 |
178 |
8,500 |
8.38 |
3.8 |
12.4 |
315 |
1/2" |
90 |
6.2 |
6.1 |
4549 |
1/2 |
13 |
42 |
1189 |
|
SA5445TG-9 |
9 |
229 |
6,600 |
8.82 |
4.0 |
12.4 |
315 |
1/2" |
90 |
6.2 |
6.1 |
4549 |
1/2 |
13 |
42 |
1189 |
SA5445TG-9 9" (229mm) w/ Governor
Industrial Air Turbo Angle Grinder
w/o Grinding Wheel
● 6.1 HP (4549W) motor provides the tremendous grinding performance.
● Adjustable Guard provides maximum protection and confort.
● Industrial quality.
● The powerful tool can working under high rotational speed.
● Low wheel consumption for better cutting off.
● The axial turbine improves power to weight ratio.
● Easy usage with light & compact tool and good accessibility.
● Vibration: <2.5 m/s²
● The new auto-balanced technique to counter balance the imbalance in the
wheel by a set of ball bearings.
SA5445TG-9 9" (229mm) w/ Governor
Industrial Air Turbo Angle Grinder
w/o Grinding Wheel
● Excellent applications for general engineering foundries
and metal fabrication.
