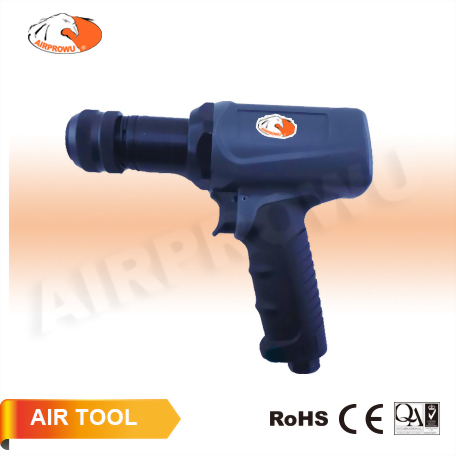

150mm Long Barrel Air Hammer

modelo : SA71109R/ SA71109H1/ SA71109H2

quantidade :

SA71109R Round Shank 0.41"
SA71109H1 Hex. Shank 10mm
SA71109H2 Hex. Shank 11mm
150mm Long Barrel Air Hammer

● Blow Per Minute: 4,000 B.P.M
● Vibration: 2.7 m/s²
● Beating Power: 460 Kgf
● Shank Opening: 0.41"

SA71109R Round Shank 0.41"
SA71109H1 Hex. Shank 10mm
SA71109H2 Hex. Shank 11mm
150mm Long Barrel Air Hammer

● Packing: 6pcs/ 10.8 kg/ 12.8 kg/ 0.7' Cuft

Model No.

Blows Per
Minute

Bore
Diameter

Piston
Stroke

Air
Cons.

Overall
Length

Net
Weight

Air
Inlet

Hose

Size

打擊次數

活塞直徑

活塞行程

耗氣量

長度

重量

進氣口

氣管尺寸

B.P.M

Inch

CFM

L/min

Inch

PT(NPT)

Inch

SA71109R(H1)(H2)

4,000

2.28

400

9.5

242

4.85

2.2

1/4

3/8

SA71109R Round Shank 0.41"
SA71109H1 Hex. Shank 10mm
SA71109H2 Hex. Shank 11mm
150mm Long Barrel Air Hammer

● Extremely Low Vibrations Level & Ultra-high Beating Power
● Ergonomic grip
● Vibration Damping System + Active Air Spring = Significant Decrease in Hammer Vibration.
● 2 patents pending in US
● Quick-change retainer chuck
● Ultra-high beating power.
