10 Ton Collision Repair Kits
10 Ton Collision Repair Kits (30 pcs)
Using these various attachments allows you to have greater control of the repair procedure,
solving problems and saving time.
■ The components are joined with threaded connectors.
■ 3-tray trolley provides storage and maneuvering.
■ Hand pump(HR2-T10E as two-speed) delivers10,000 psi &
with automatic overload system against operator injury.
■ Flexible hydraulic hose with spring guards at both ends.
■ Packing: HR2-T10E 78.5/81.5kgs/6.9'

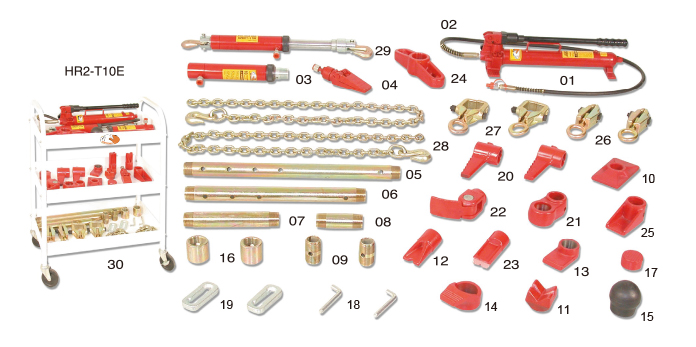

10 Ton Collision Repair Kits (30 pcs)
|
|
Parts NO. |
Description |
|
Parts NO. |
Description |
|
01 |
HA603 |
Single-speed hydraulic hand pump |
16 |
D0045 |
Female connector |
|
|
HA601 |
Two-speed hydraulic hand pump |
17 |
F0033 |
Serrated saddle |
|
02 |
HS235 |
Jack hose, 5 feet |
18 |
E0066 |
Lock pin |
|
03 |
RB106 |
10 ton ram w/ 6" stroke |
19 |
C0026 |
Pull ring |
|
04 |
SR05A |
1/2 ton hydraulic spreader ram |
20 |
F0035 |
Offset pull toe |
|
05 |
D0049 |
25" Extension tube |
21 |
F0148 |
Clamp head |
|
06 |
D0048 |
20" Extension tube |
22 |
B0042 |
Adjustable toe |
|
07 |
D0047 |
10" Extension tube |
23 |
F0028 |
Spring spreader toe |
|
08 |
D0046 |
5" Extension tube |
24 |
F0149 |
Chain pull plate |
|
09 |
D0044 |
Male connector |
25 |
F0038 |
Clamp end toe |
|
10 |
F0032 |
Flat base |
26 |
CL101 |
Pull clamp |
|
11 |
F0029 |
90° "V" base |
27 |
CL103 |
Fender clamp |
|
12 |
F0030 |
Wedge head |
28 |
M0014 |
5 1/6" x 5' Chain & grad hook |
|
13 |
F0027 |
Plunger toe |
29 |
BK506A |
5 Ton pull ram kit |
|
14 |
F0097 |
Ram toe |
30 |
B0595 |
3-Shelf service cart |
|
15 |
B0085 |
3 1/4" Rubber flex head |
|
|
|
