1" 18V Cordless Torque Wrench w/o Socket & Battery
SEIW1800V-LB12 1"
SEIW1800V-LB16 1"
SEIW1800V-LB18 1"
SEIW1800V-LB20 1"
SEIW1800V-LB25 1"
SEIW1800V-LB26 1"
SEIW1800V-LB32 1"
SEIW1800V-LB40D 1"

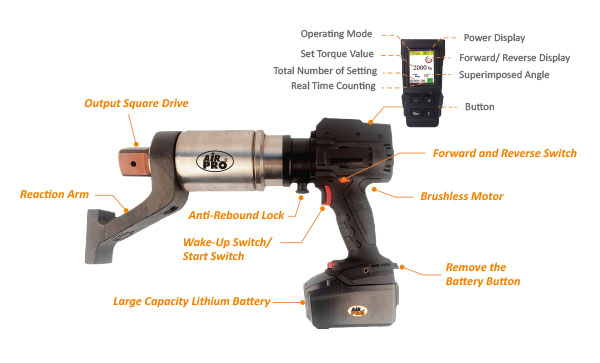

18V Cordless Torque Wrench
w/o Socket & Battery
● Uses 18V, 5Ah lithium-ion battery with power display function, which is strong and durable,
lighter in weight and can be upgraded to 8.0Ah or 12.0Ah.
● Color LCD display, no torque comparison table required, torque accuracy ±5%.
● High-performance brushless motor technology, higher output efficiency
and higher working efficiency on a single charge.
● When the reduction of battery power affects the torque output accuracy,
the control system will automatically shut down the system and alarm.
● Chinese/English dual language.
● Multi-level password protection.
● 1Nm increase or decrease resolution setting torque.
● Bolt counting function.
● Standard bolt torque recommendation function.
● Pass/fail (OK/NG) judgment function.
● Can store 2000 pieces of torque operation information.
● Fault alarm and over-temperature alarm functions.
● Torque + angle function, angle + torque limit function.
● The power handle and transmission mechanism can rotate 360 degrees,
with a mechanical locking system to protect the operator.
● Suitable for occasions where there is no power source and high torque
is required for precise disassembly and assembly to improve assembly
quality and efficiency.
● Comes standard with two 5.0Ah lithium batteries and a fast charger,
charging time is within 60 minutes.
SEIW1800V-LB12 1"
SEIW1800V-LB16 1"
SEIW1800V-LB18 1"
SEIW1800V-LB20 1"
SEIW1800V-LB25 1"
SEIW1800V-LB26 1"
SEIW1800V-LB32 1"
SEIW1800V-LB40D 1"
18V Cordless Torque Wrench
w/o Socket & Battery
Contents:
● 1PC Cordless Torque Wrench
● 1PC Metal Box
Optional:
● Reaction Arm (SEIW1800V-LBRA)
|
Model No. |
Torque range |
Square |
Outer Diameter |
Length |
No-load speed |
Weight |
Packing |
|
Nm |
C (Inch) |
D (mm) |
L (mm) |
R.P.M |
kg |
Set/ Ctn/ G.W/ N.W/ Cuft (kgs) |
|
|
SEIW1800V-LB10 |
230 - 1000 |
1 |
75 |
280 |
6.0 |
4.5 |
- |
|
SEIW1800V-LB12 |
285 - 1200 |
1 |
75 |
285 |
6.0 |
4.7 |
- |
|
SEIW1800V-LB16 |
350 - 1600 |
1 |
75 |
290 |
5.0 |
4.9 |
- |
|
SEIW1800V-LB18 |
450 - 1800 |
1 |
75 |
290 |
5.0 |
4.9 |
- |
|
SEIW1800V-LB20 |
450 - 2000 |
1 |
75 |
295 |
4..5 |
4.9 |
- |
|
SEIW1800V-LB25 |
600 - 2500 |
1 |
88 |
360 |
3.5 |
6.9 |
- |
|
SEIW1800V-LB26 |
700 - 2600 |
1 |
88 |
360 |
3.5 |
6.9 |
- |
|
SEIW1800V-LB32 |
700 - 3200 |
1 |
88 |
365 |
3.5 |
7.1 |
- |
|
SEIW1800V-LB40D |
900 - 4000 |
1 |
88 |
378 |
2.5 |
7.4 |
- |
